AP3000/X
1/4
  • AP3000/X
  • AP3000/X
  • AP3000/X
  • AP3000/X
AP3000/X

Extreme Networks

AP3000/X

SKU: AP4020-WW
Pre Order
RM4,800.00

Wi-Fi 6E Dual-Radio Indoor 2x2:2 Access Point dengan Sokongan untuk Berbilang Sistem Pengendalian
RM4,800.00
RM155.00

Pembaharuan automatik, langkau atau batal pada bila-bila masa. Lihat dasar langganan

Untuk menambah ke troli, pergi ke halaman produk dan pilih opsyen pembelian
What's In the Box
  • AP4020-WW AP
  • Mounting Bracket
  • ExtremeCloud IQ Cloud Management 1 Year
  • Extreme PWP Support 1 Year
  • vcare 24/7 Support, Remote/Onsite and Hardware Replacement 1 Year
  • vcare Installation and configuration (within Klang Valley)
Features

TEKNOLOGI WI-FI 6E

Wi-Fi 6E memanfaatkan keupayaan 802.11ax/Wi-Fi 6 seperti prestasi berketumpatan tinggi, berkapasiti tinggi dan kecekapan tinggi serta memanjangkan keupayaan ini kepada jalur 6 GHz. Pengembangan frekuensi yang meluas membolehkan kes penggunaan baharu dan menawarkan pengalaman pengguna yang lebih baik, terutamanya dalam persekitaran yang kritikal dan padat.


PERKAKASAN UNIVERSAL

AP3000/X ialah platform perkakasan universal, yang memudahkan pengalaman penggunaan anda melalui pengurusan awan yang berkuasa dan pelesenan yang dipermudahkan. AP3000/X boleh menjalankan pelbagai sistem pengendalian Extreme, memberikan fleksibiliti dan pilihan sambil meminimumkan jumlah kos pemilikan.


ANTENA LUARAN DAN Julat SUHU LANJUTAN

AP3000/X menampilkan pilihan antena luaran dan julat suhu lanjutan untuk menyampaikan pengalaman pengguna 6 GHz kepada pelbagai kes penggunaan.


Lebih Banyak Ciri

  • Penapis berbilang jalur membolehkan prestasi radio unggul merentas spektrum 5 GHz dan 6 GHz
  • Pengalaman pengguna optimum yang dikuasakan oleh AI/ML dengan SmartRF dan ExtremeCloudIQ CoPilot
  • Terkini dalam Wi-Fi Selamat dengan Extreme AirDefense dan sokongan untuk WPA3 dan Wi-Fi Enhanced Open
  • Radio IoT pelbagai guna bersepadu untuk pelbagai aplikasi IoT
  • Gateway direka bentuk untuk melindungi peranti IoT berwayar berisiko tinggi menggunakan ExtremeIoT Essentials.
  • Wi-Fi berfungsi sepenuhnya melalui 802.3af

MUAT TURUN SPESIFIKASI
Specifications

Dual IoT Radios

  • (2) radios for Thread, Zigbee®, Bluetooth 5.4 Low Energy, IEEE 802.15.4 Thread


Interfaces

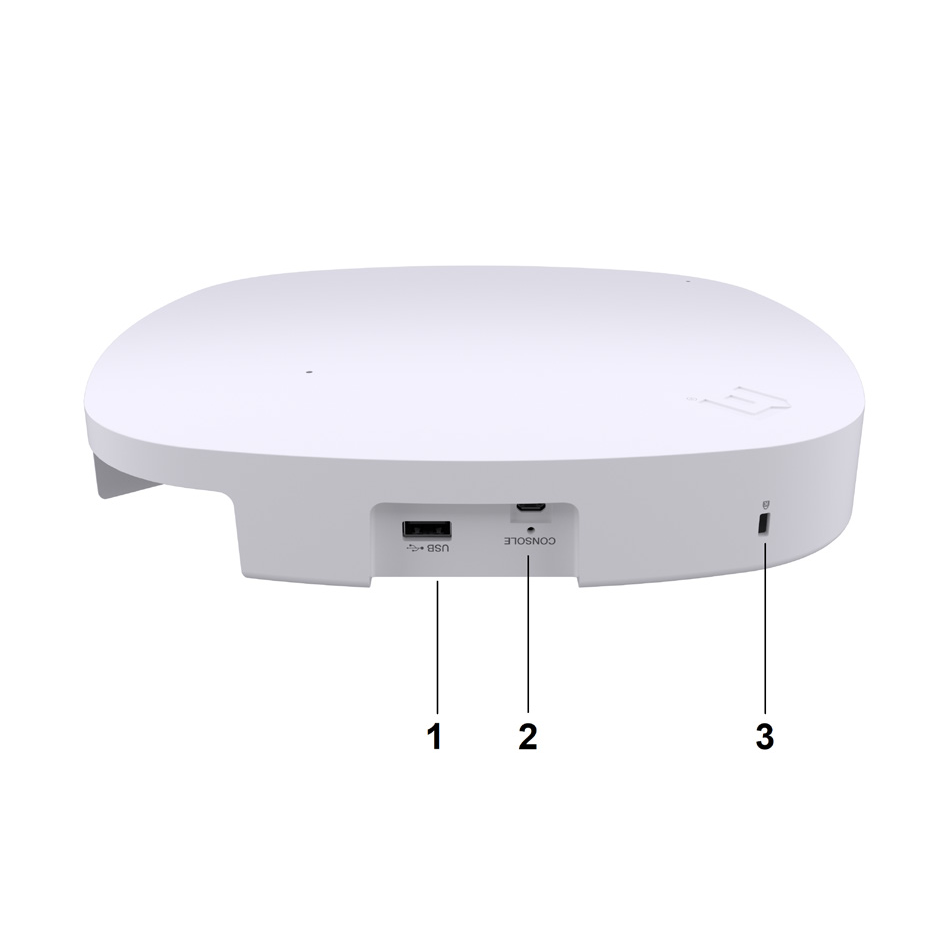

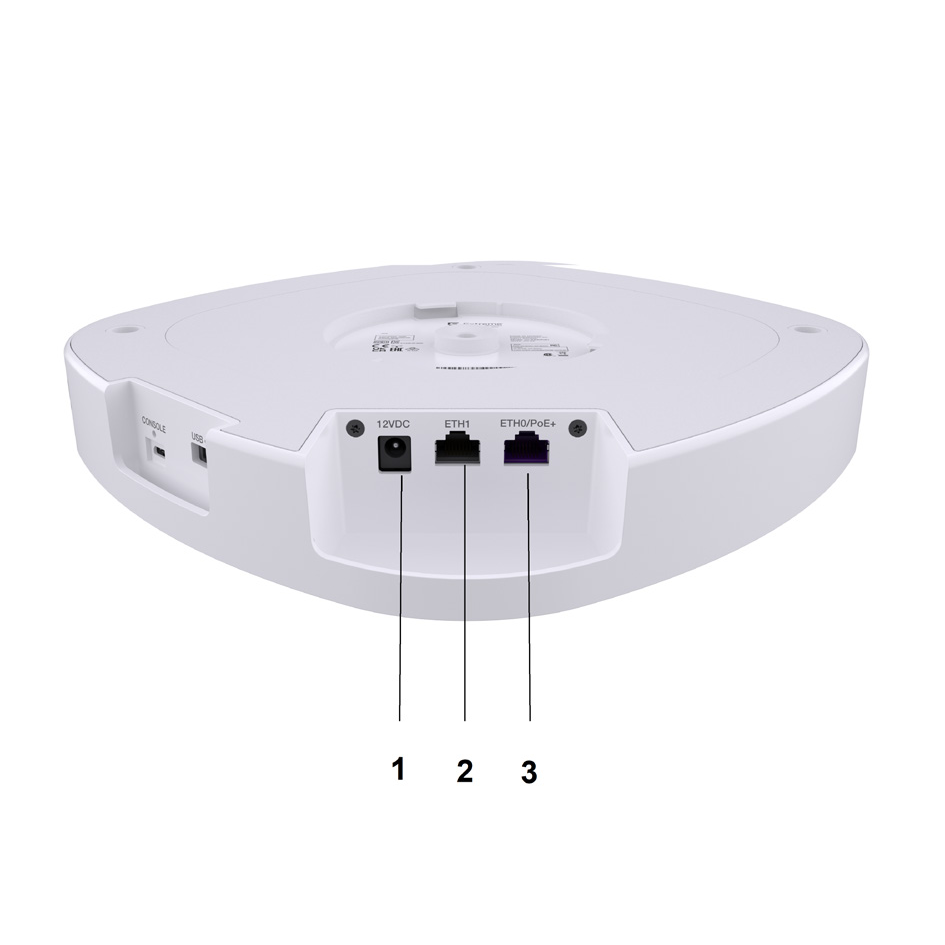

  • Eth0, Eth1: (2) wired Ethernet ports (RJ45)
  • Eth0: 100/1000/2500/5000Mbps autosensing link speed Ethernet port, PoE PD
  • Eth1: 100/1000/2500 Mbps autosensing link speed Ethernet port, PoE PD
  • 802.3az Energy-Efficient Ethernet (EEE)
  • USB 2.0, Type A, 5V/500mA with POE 802.3at or 5V/1,000mA with PoE 802.3bt


Power Options

  • Power Draw: 802.3at PoE: Typical 21W with USB 2.5W; Max: 25.5W 2.5W USB
  • Power Draw: 802.3bt: Max: 28W with 5W USB
  • PoE Failover


Physical Specifications

  • Dimension: 238mm x 238mm x 38mm, 9.37in. x 9.37in. x 1.50in.
  • Weight: 1.30 kg

Environmental Specifications

  • AP4020 Operating: 0°C to 50°C (32°F to 122°F)
  • AP4020X Operating: -20°C to 55°C (-4°F to 131°F)
  • AP4020FX Operating: -20°C to 55°C (-4°F to 131°F)
  • Storage: 0°C to 70°C (32°F to 158°F)
  • Humidity: 0% to 95% (non-condensing)


Security

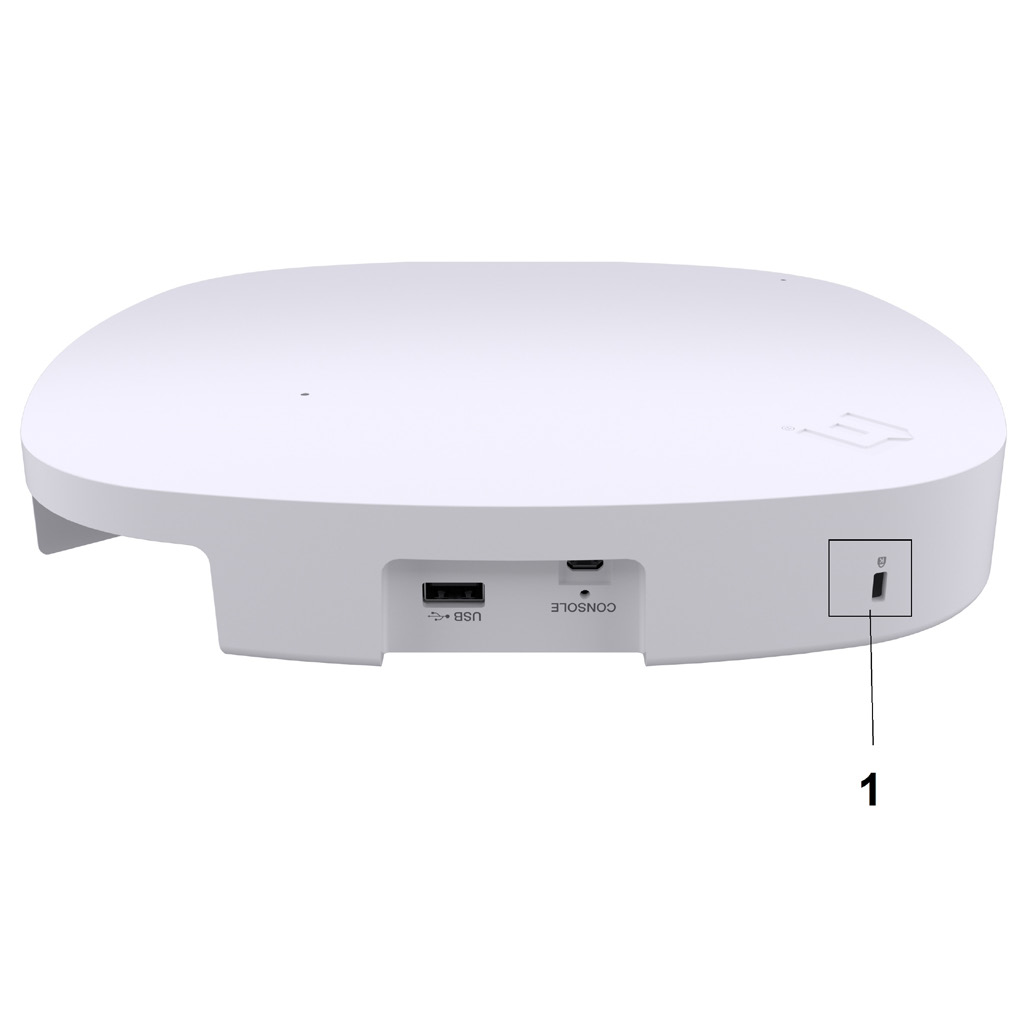

  • Kensington lock slot
  • Trusted Platform Module (TPM)


Internal Antennas

  • (2) dual band 2.4 GHz and 5 GHz
  • (2) single band 5 GHz
  • (2) single band 6 GHz
  • (1) 2 GHz/5 GHz/6 GHz sensor
  • (3) IoT sensor


Mounting

  • AP support 15/16 in. flush ceiling tile included in the box
  • Wall mount included in the box or sold as an accessory
  • Sculpted ceiling tile 15/16 in. wide t-bar sold as an accessory
  • Sculpted ceiling tile 9/16 in. wide t-bar sold as an accessory
  • Beam sold as an accessory
  • Junction box sold as an accessory
  • IL or 9/16 in. t-bar sold as an accessory
  • SL (Silhouette) sold as an accessory
  • WiNG main plate adaptor sold as an accessory
  • Built-in slot for Kensington


Environmental Compliance

  • EU RoHS – 2011/65/EU and Amendments(EU) 2015/863
  • EU WEEE – 2012/19/EU
  • EU REACH - Regulation (EC) No 1907/2006 – Reporting
  • EU SCIP – EU Waste Framework Directive
  • China RoHS – 2 SJ/T 11364-2014
  • Taiwan RoHS CNS 15663 (2013.7)


Regulatory Compliance

  • Radio Standards USA
  • Part 15C - 15.247
  • Part 15E - 15.407
  • RF exposure - FCC Part 1.1307

Radio Standards Canada

  • RSS 247 for 2.4G & 5GHz
  • RSS 248 6GHz RLAN
  • RF exposure - RSS-102: Issue 5, 2015

Radio Standards CE

  • 2014/53/EU Radio Equipment Directive
  • EN 300 328, EN 301 893, EN 302 502, EN 300 440
  • EN301 489 1, EN 301 489 17, EN 62311, EN 50385


Regulatory and Safety

  • North American ITE
  • UL 60950-1 2nd Edition listed device (U.S.)
  • CSA 22.2 No. 60950-1 2nd Edition 2014 (Canada)
  • UL/CuL 62368-1 Listed
  • UL 2043 Plenum rated

European ITE

  • EN 62368-1
  • 2014/35/EU Low Voltage Directive

International ITE

  • CB IEC 62368-1 2nd Edition + National Differences
  • CB IEC 62368-1 1st and 3rd Editions + National Differences
  • AS/NZS 60950-1 (Australia /New Zealand)


EMI/EMC Standards

  • North American EMC Standards
  • FCC CFR 47 part 15 Class B (USA)
  • ICES-003 Class B (Canada)
  • European EMC Standards
  • EN 55032 Class B
  • EN 55035
  • EN 55011
  • EN 60601-1-2
  • EN 61000-3-2: (Harmonics)
  • EN 61000-3-3 (Flicker)
  • 2014/30/EU EMC Directive

International EMC Certifications
Documentations

Datasheet

Quick Reference Guide

Image Disclaimer:

Product images are for illustrative purposes only. Actual product colors, textures, sizes, and details may vary due to lighting, screen settings, or production changes. Please refer to the product description for accurate specifications.
