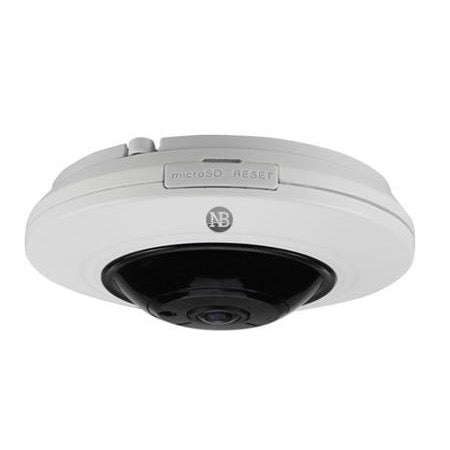

E Series Fisheye

The Newbridge E Series Fisheye IP Camera is a most affordable Full HD specifically design for indoor, day and night color recording with smart functionality, such as motion detection, Near Infrared light (NIR) with up to 30 frame /s at 3000 x 3000 video stream resolution (only 12MP Camera model). With various choice, 2 megapixels, 4 megapixels and 12 megapixels recording and give real live times viewing.

Powered by Exmor, Sony’s high performance CMOS image sensor with high-speed processing, low noise and low power dissipation by using column parallel A/D conversion. Increase sensitivity in the near infrared range as well as the visible light range. This makes it possible to obtain clear images that enable to sufficiently discriminate subjects even under moonlit conditions.

* Exmor is a trademark of Sony Corporation only apply for model E-F4F020W3-L and E-F12F020W3-L

Features

• 120dB WDR allow clear images to be seen in light and dark areas simultaneously – rather than over exposing or under exposing various areas of scene. The following shown the WDR images.

• H.265 compression allow further reduce the network bandwidth consumptions in transmission and take up less storage space.

• Near-­‐Infrared (NIR) improve picture quality at low illumination, provide clear images even in darkness.

• Infrared range up to 20 meter

• Up to 30fps frame rate**

• 3D NR (Noise Reduction)

• Triple Stream video**

• Defog, Private Mask and BLC**

• ONVIF open standard compatible.

• 10/100Base-­‐T RJ 45 port with IEEE802.3af Power over Ethernet

• 2-­‐way audio I/O and Alarm I/O

• Edge Storage up to 64 GB Micro SD (options)

• Weather proof and vandal resistant

** model E-F4F020W3-L and E-F12F020W3-L

Dimensions

Specification

Click Here for datasheet
