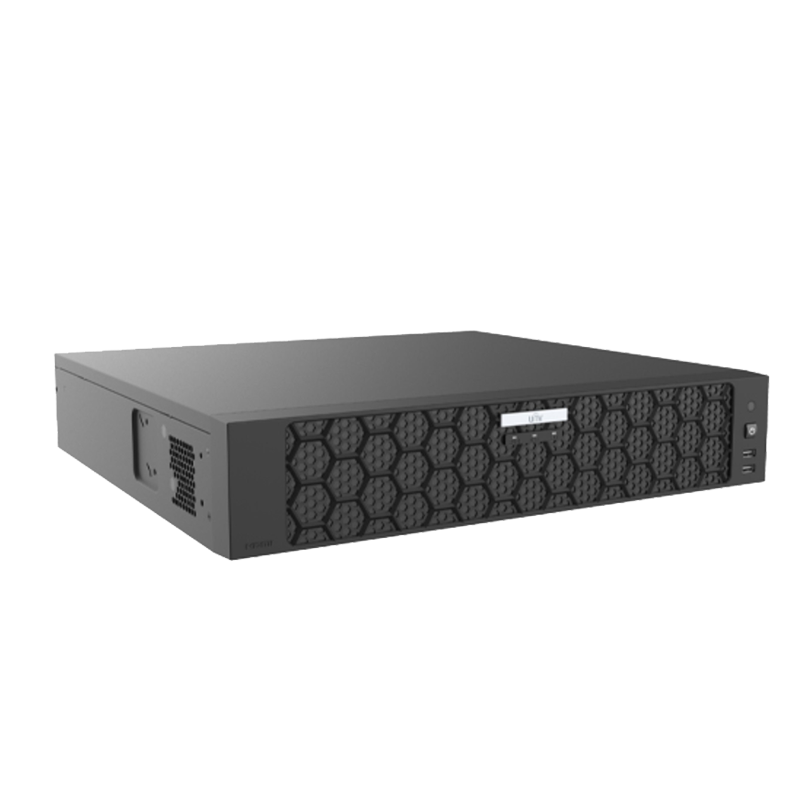

UNV NVR 64-ch 8-SATA 12TB

Uniview

UNV NVR 64-ch 8-SATA 12TB

SKU: NVR508-64B
Pre Order
RM3,210.00
Pre Order

Auto-renews, skip or cancel anytime. View subscription policy

To add to cart, go to the product page and select a purchase option
What's In the Box
Features
  • Support Ultra 265/H.265/H.264 video formats
  • 64-channel input
  • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • VGA and HDMI independent output (NVR508-64B simultaneous output by default , independent output configurable)
  • Up to 12 Megapixels resolution recording
  • 8 SATA HDD, up to 12TB for each HDD
  • Support N+1 Hot spare
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
  • SUPPORT SIP BY CAMERA UP TO 8CH


Specifications
  • Brand: Uniview
  • Range: Prime
  • IP compatible cameras: UNIVIEW, ONVIF
  • Video outputs: 1 HDMI 4K, 1 VGA
  • Video compression format: Ultra H.265 / H.265 / H.264
  • Network interface: 2 RJ-45 10M / 100M / 1000M
  • Total bandwidth: 320 Mbps downstream / 160 Mbps upstream
  • Main Stream recording: 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
  • Display resolution: HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
  • Capacity: Ultra 265/H.265: 2x16MP@30, 2x12MP@30, 4x4K@30, 6x5MP@30, 8x4MP@30, 10x3MP@30, 16x1080P@30, 32x960P@25, 36x720P@30, 64xD1H.264: 2x16MP(4800x2688)@30, 2x12MP@30, 2x4K@30, 4x5MP@30, 6x4MP@30, 8x3MP@30, 14x1080P@30, 28x960P@25, 30x720P@30, 64xD1
  • Smart features by camera: 8 channels
  • VCA detection by camera: Intrusion detection, Cross line detection, Entry area, Exit area, Blur detection, Scene change detection, Object left behind, Object removed, Auto tracking, UMD (Ultra Motion Detection)
  • Recording method: Manual, programmed, motion detection
  • External Backup: USB / HDD USB memory
  • Bidirectional audio: 1 input / 1 RCA output
  • Alarms: 16 Inputs / 4 Outputs
  • Internal memory: 8 SATA HDD 3.5" of up to 8 TB (not included)
  • Communication: 2 x USB 2.0 / 1 x RJ45 (Ethernet)
  • Remote access: Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
  • Power: 100~240V AC / 32W
  • Dimensions / Weight: 442mm × 426mm × 89mm / 4 Kg
Documentations

Datasheet
