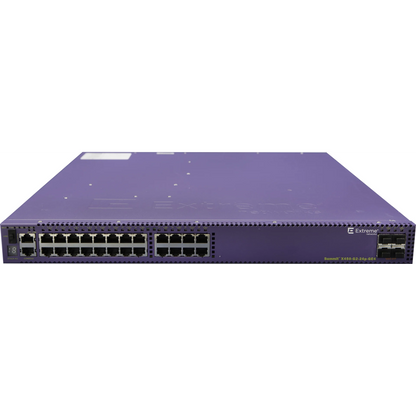

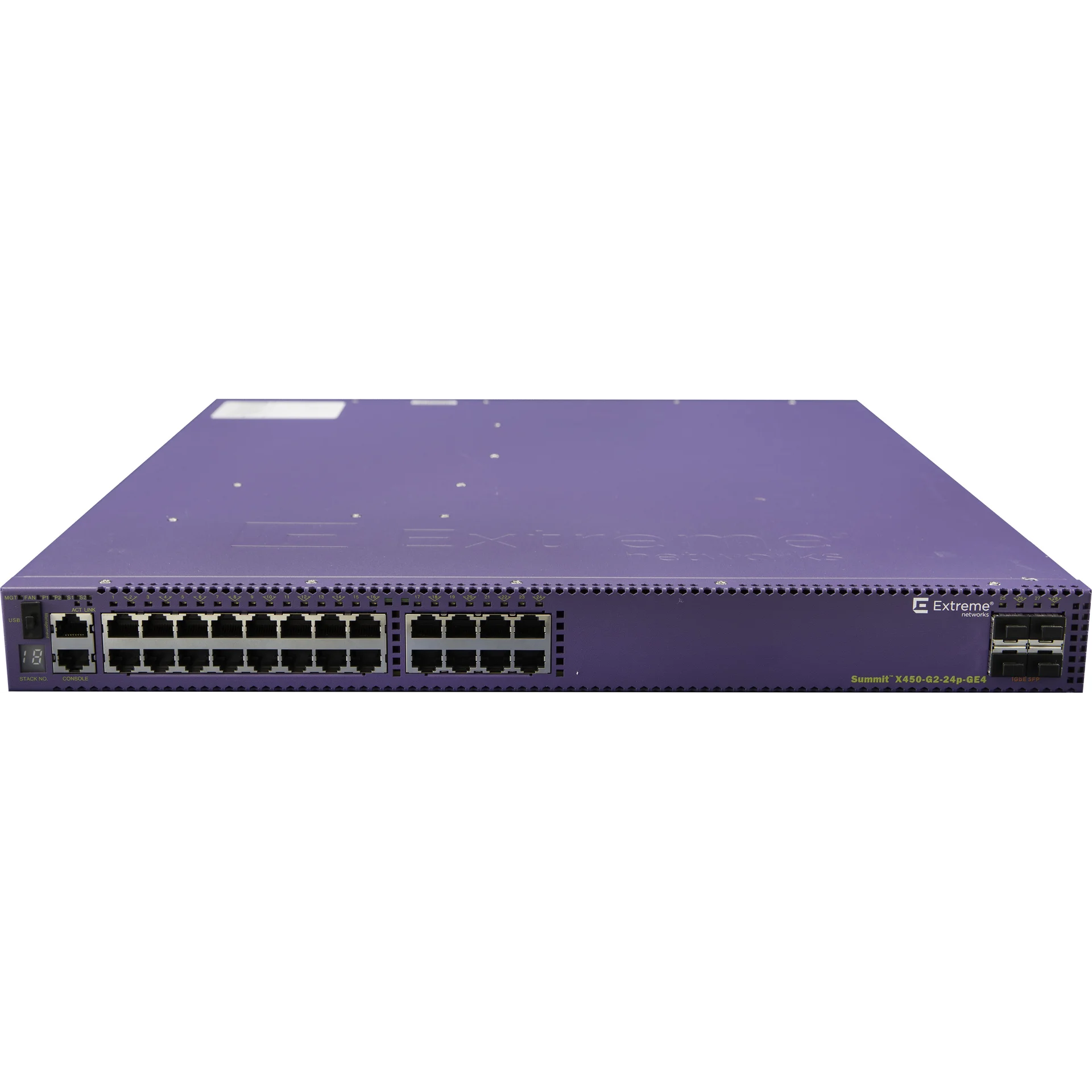

X450-G2-24p-10GE4
1/2
  • X450-G2-24p-10GE4
  • Get Extreme Networks X450-G2 Series (24p) from Malaysia Distributor - vnetwork
X450-G2-24p-10GE4

Extreme Networks

X450-G2-24p-10GE4

SKU: 16173
Pre Order
RM15,423.75

The X450-G2 series is based on Extreme Networks ExtremeXOS, a highly resilient OS that provides continuous uptime, manageability, and operational efficiency. Each switch offers the same high-performance, non-blocking hardware technology, The X450-G2 series switches provide high-performance routing and switching, flexible stacking, PoE+support, and comprehensive security, while extending the benefits of ExtremeXOS to the campus edge.
RM15,423.75
RM463.32
RM15,423.75

Auto-renews, skip or cancel anytime. View subscription policy

To add to cart, go to the product page and select a purchase option
What's In the Box
  • 24 x 10/100/1000BASE-T PoE-Plus
  • 4 x 1GBASE-X SFP (unpopulated ports)
  • 2 dedicated QSFP-form factor 21Gbps stacking ports on the rear panel
  • Power Cord, 10A, UK, BS 1363, IEC320-C15
  • Fan Module for Summit X460-G2/X450-G2 Series Switches - front to back airflow
  • Extreme PartnerWorks Plus PWP NBD AHR 16173, 3yr
  • vCare Extreme PW-RPL85NBD X450-G2-24p-10GE4-Base, 3y
Features
  • Scalable edge switches with ExtremeXOS operating system
  • 24-port or 48-port Gigabit Ethernet connectivity
  • Copper and PoE+ models
  • 4 x 10Gb SFP+ uplink ports on front faceplate
  • Built-in 21 Gbps stacking ports on rear panel for all models (SummitStack-V84)
  • Front-to-back airflow
  • Modular PoE power supplies
  • Hot-swappable fan tray and PoE power supplies
  • All configurations non-blocking full duplex
  • Role-based policy and Fabric Attach for secure, automated access to network applications or services

Smart Management Choices

  • ExtremeCloud™ IQ for powerful, simple and secure public or private cloud management
  • ExtremeCloud IQ – Site Engine for centralized, unified management capabilities



T&C (Terms and condition):

  • 3-Year Network-as-a-Service (NaaS) Subscription Package
  • Inclusive of Installation, Support Services, Management, Monitoring and Reporting.
  • Valid for standard configuration and installation within the Klang Valley. For outstation services or custom configurations, please contact us directly.
  • Promotion valid till 27 June 2025 or While stock last
Specifications
  • Maximum Active 1Gbe Ports: 24
  • Maximum Active 10Gbe Ports: 4
  • 21 Gbps Stacking Ports: 2
  • Aggregated Switch Bandwidth*: 212 Gbps
  • Frame Forwarding Rate*: 157.7 Mpps
  • Less than 4 microsecond latency (64-byte)
  • Layer 2/MAC Addresses: 68K
  • IPv4 LPM Entries: 16K
  • IPv6 LPM (64-bit) Entries: 8K
  • IPv6 LPM (128-bit) Entries: 256
  • 4096 VLAN/VMANs*
  • 9216 Byte Max Packet Size (Jumbo Frame)
  • 128 load sharing trunks, up to 32 members per trunk
  • 1,024 ingress bandwidth meters
  • Ingress and egress bandwidth policing/rate limiting per flow/ACL
  • 8 QoS egress queues/port
  • Egress bandwidth rate shaping per egress queue and per port
  • Rate Limiting Granularity: 8 Kbps
  • Rate Limiting: Per Class of Service
  • All ports Full Duplex - half duplex operation is not supported

* 2 VLANs reserved for system use

Policy Capabilities

  • Policy Profiles: 63
  • Rules per Profile: Up to 1464
  • Authenticated Policy Users per Switch: Up to 1024
  • Authenticated Policy Users per Port: Up to 1024
  • Unique Permit/Deny Rules per switch: 1464
  • MAC Rules: 512
  • IPv4 Rules: 512
  • IPv6 Rules: 256
  • L2 Rules: 184

Note: Policy and rule limits here reflect support available in EXOS22.1.
Documentations

Datasheet

Image Disclaimer:

Product images are for illustrative purposes only. Actual product colors, textures, sizes, and details may vary due to lighting, screen settings, or production changes. Please refer to the product description for accurate specifications.
