SKU:
MQSE-4A1-D
Out of stock
Lutron

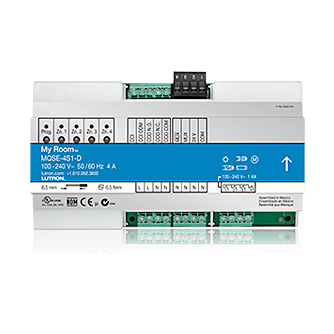

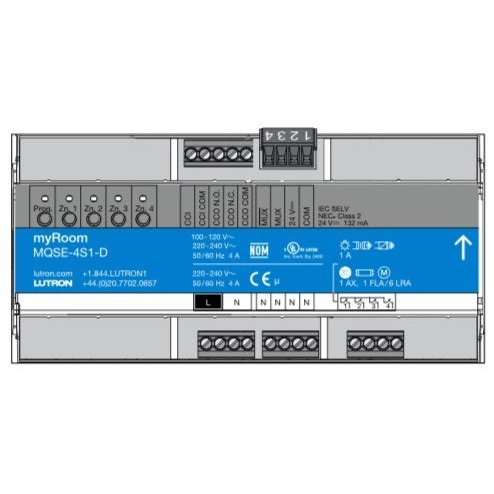

DIN Power Module - Phase Adaptive
What's In the Box
What's In the Box
Description
Description
The Phase Adaptive Power Module family is a group of modular products for the control of lighting loads. This product is compatible with Lutron myRoom guestroom systems only.
Features
-
Leading-edge or trailing-edge dimming for incandescent / halogen, electronic / magnetic low-voltage, and neon / cold cathode light sources.
-
Controls dimmable CFL/LED loads. Refer to www.lutron.com/LEDTool for compatibility with dimmable CFL/LED light sources.
-
RTISS Equipped technology compensates for incoming line-voltage variations (up to ± 2% change in frequency / second) such as changes in Root Mean Square (RMS) voltage, frequency shifts, harmonics, and line noise.
-
NEMA® SSL7A-2015 compliant for compatibility with solid-state lighting.
-
Includes QS link for seamless integration of lights, motorized window treatments, and control stations.
-
Provides 4 Power Draw Units (PDUs) to power QS devices on the QS link.
-
LEDs on the module provide diagnostic information.
-
Buttons on module provide load override control.
-
Power failure memory.
Models Available*
|
Model Number |
Maximum Input Current |
Input Voltage |
Outputs |
|
MQSE-4A1-D
|
4A |
100–120 V~, 220–240 V~ 50/60 Hz |
1 A per output, 4 outputs |
|
MQSE-3A1-D
|
3A |
120–240 V~ 50/60 Hz |
1 A per output, 3 outputs |
|
MQSE-2A1-D
|
2A |
120–240 V~ 50/60 Hz |
1 A per output, 2 outputs |
* Not all models are available in all countries.
