Wi-Fi Radio Specifications:

• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax/be

Supported Rates:

• 802.11be (Wi-Fi 7): 100 Mbps to 46,000 Mbps (46 Gbps)
• 802.11ax: 8 to 4,802 Mbps
• 802.11ac: 6.5 to 1,732 Mbps
• 802.11n: 6.5 to 600 Mbps
• 802.11a/g: 6 to 54 Mbps
• 802.11b: 1 to 11 Mbps

Supported Channels:

• 2.4GHz: 1-13
• 5GHz : 36-64, 100-144, 149-165
• 6GHz (Wi-Fi 6E/7) 1-233

MLO:

• Bands in use: 5GHz 2x2; 6GHz 2x2
• Channel Width: Up to 160 MHz per band (or 320 MHz if supported on 6GHz)
• QAM Modulation: Up to 4096-QAM
• Spatial Streams: 2SS for MLO on 5Ghz
• Channelization: 20, 40, 80, 160 Mhz
• Modulation Techniques: OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
• Security: WPA2 AES, WPA2/WPA3, WPA3
• Antenna: Built-in antenna 2pcs, antenna gain: 3dBi@2.4GHz, 3.3dBi@5GHz

Transmit Power (EIRP), Subject to local authority approval:

• 2.4 GHz at 27 dBm
• 5 GHz at 30 dBm
• 6 GHz at 24 dBm

NETWORKING:

• Operating Mode: Controller-managed; Standalone
• IP: IPv4, IPv6, dual-stack
• VLAN: VLAN Pooling; Port-based
• 802.1x: Authenticator & Supplicant
• Roaming: Yes
• DHCP Server: Yes

PHYSICAL:

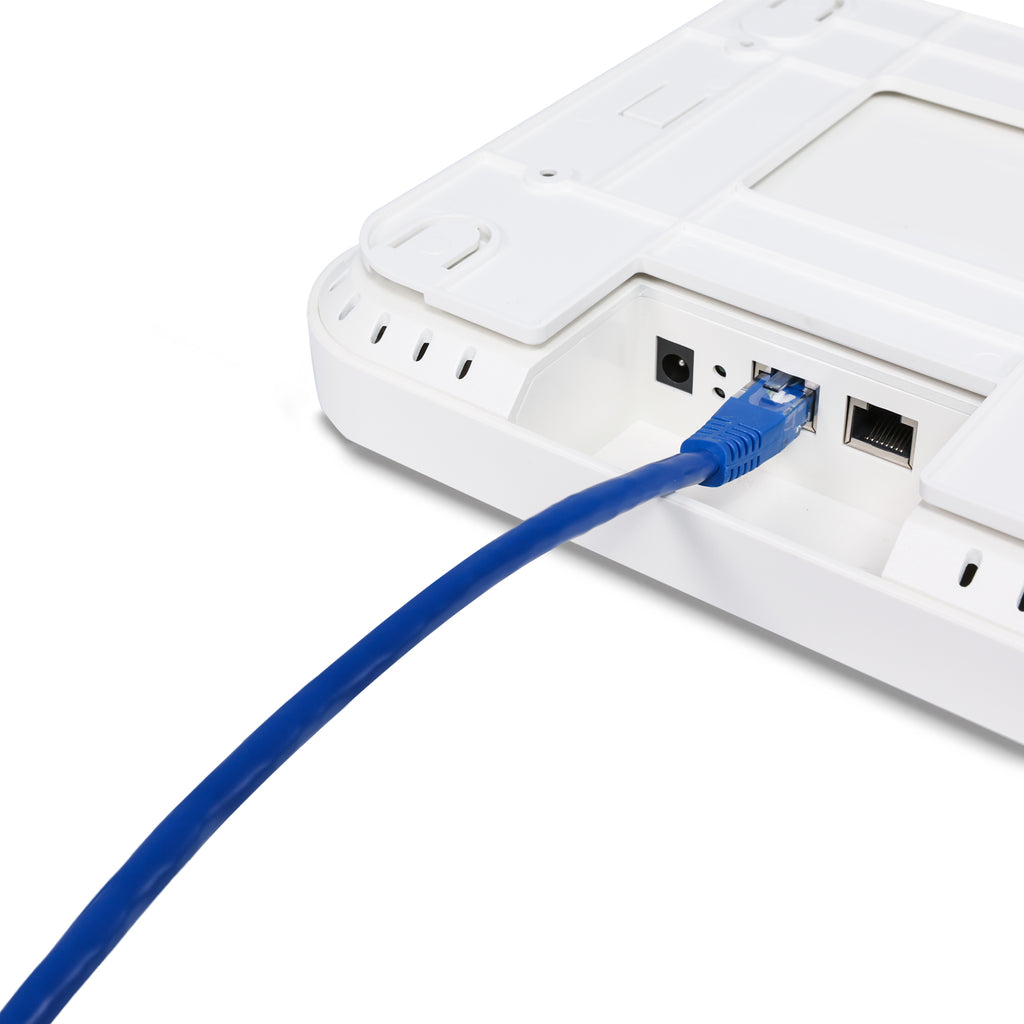

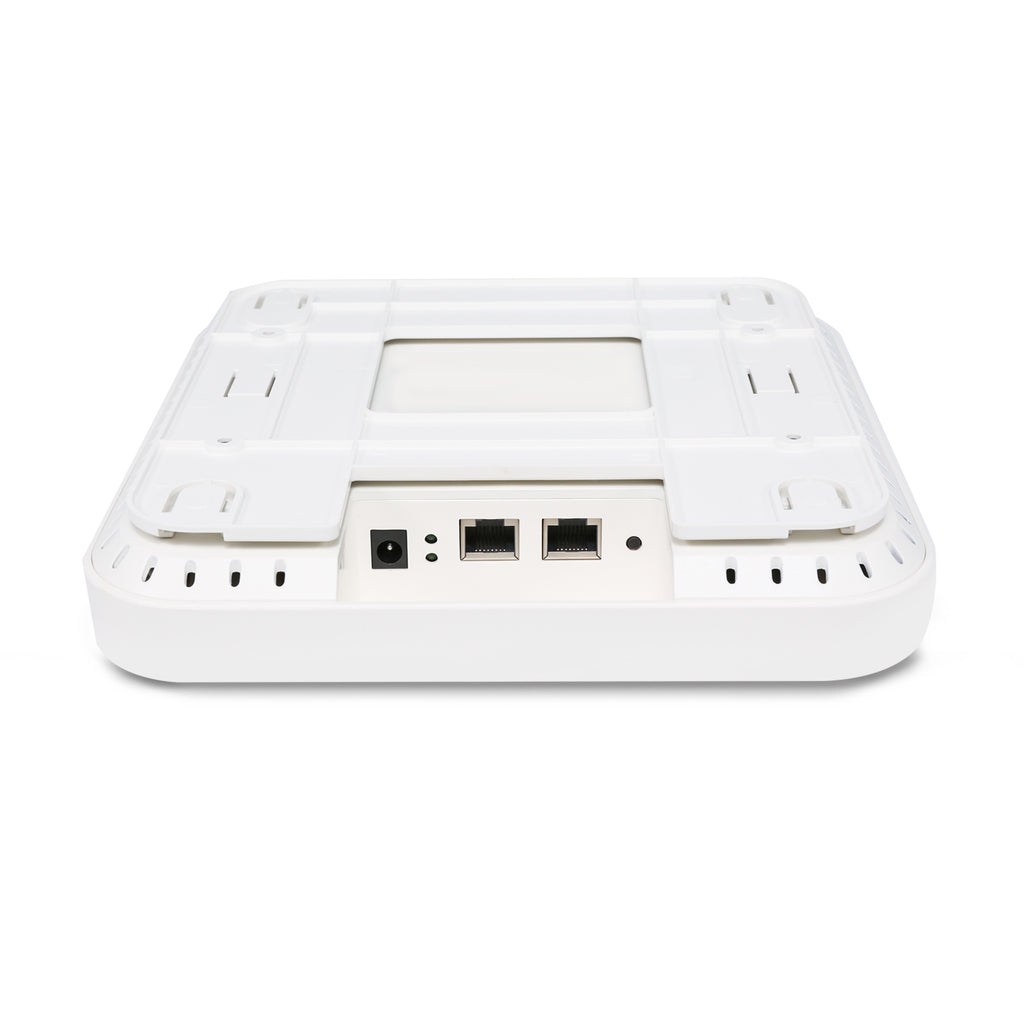

Ethernet Interface:

• 10 x 100/1,000/10, 000Mbps autosensing link speed Ethernet 802.3bt POE port
• 1 x 100/1,000/2,500Mbps auto-sensing link speed Ethernet port
• 1 x 10G SFP+ Fiber Port

• Power Supply: IEEE 802.3bt
• Dimensions: Height (H): 220 mm, Width (W): 220 mm, Depth (D) 42 mm
• DC Jack: Yes (DC2.0 12V/3A)
• Power Consumption: < 40W
• Weight: 0.650 kg
• Operating Temperature: Working Temperature: -10°C to 55°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: Working Humidity : 5% to 95% (Non-Condensing)
• ESD: Air:±8K, Touch:±6K
• Electrical Surge: Common Mode: 2K, Differential Mode: 1K

PERFORMANCE AND CAPACITY:

Peak PHY Rates:

• 2.4GHz : 688 3Mbps
• 5 GHz : 2,882 2Mbps
• 6 GHz : 11,528 1Mbps

• Maximum Stations Capacity: Support up to 1,024 4associated client devices per radio or 2,048 associated client per AP concurrently
• BSSID: Up to 48 per AP

**4 Each AP722-WP provides connectivity for a maximum of 1024 associated clients per radio (2,048 in total). In real-world scenarios, the maximum recommended client density is dependent on environmental conditions.

ORDER INFORMATION:

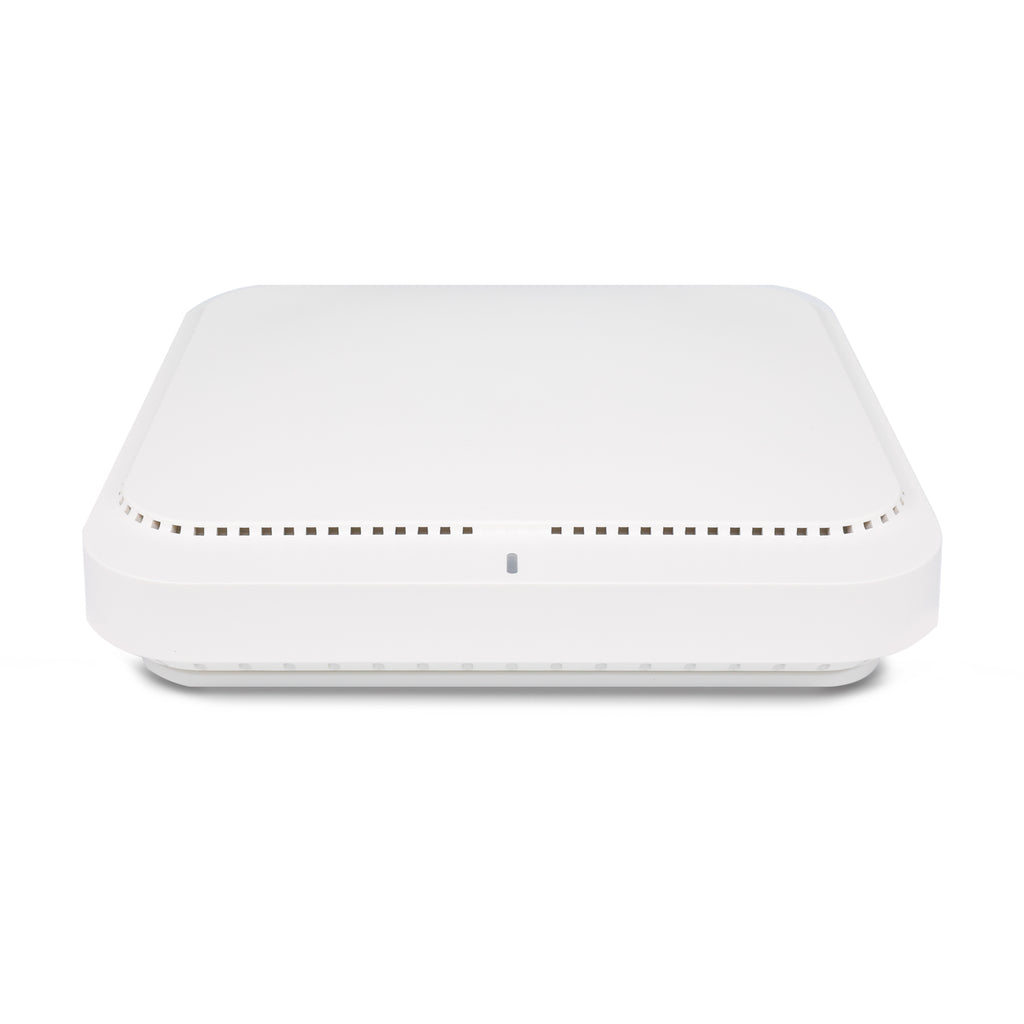

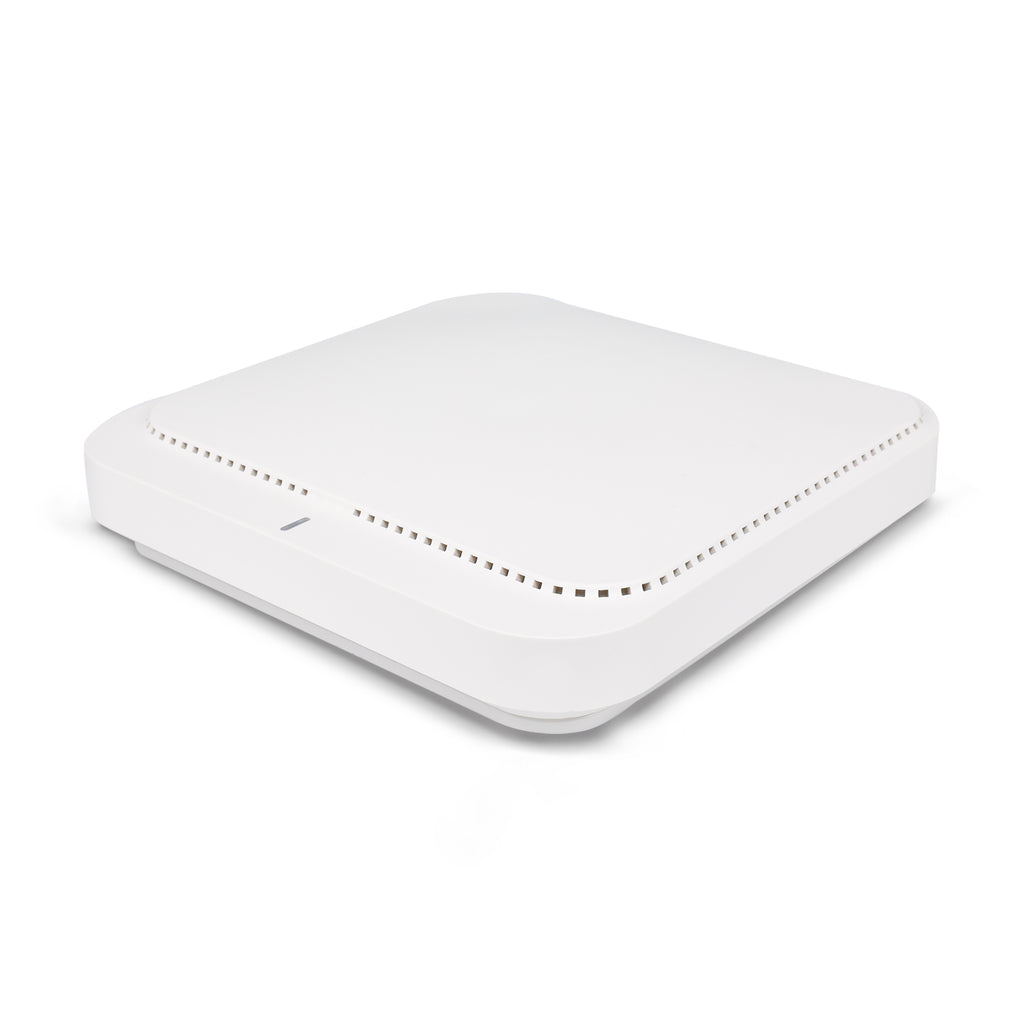

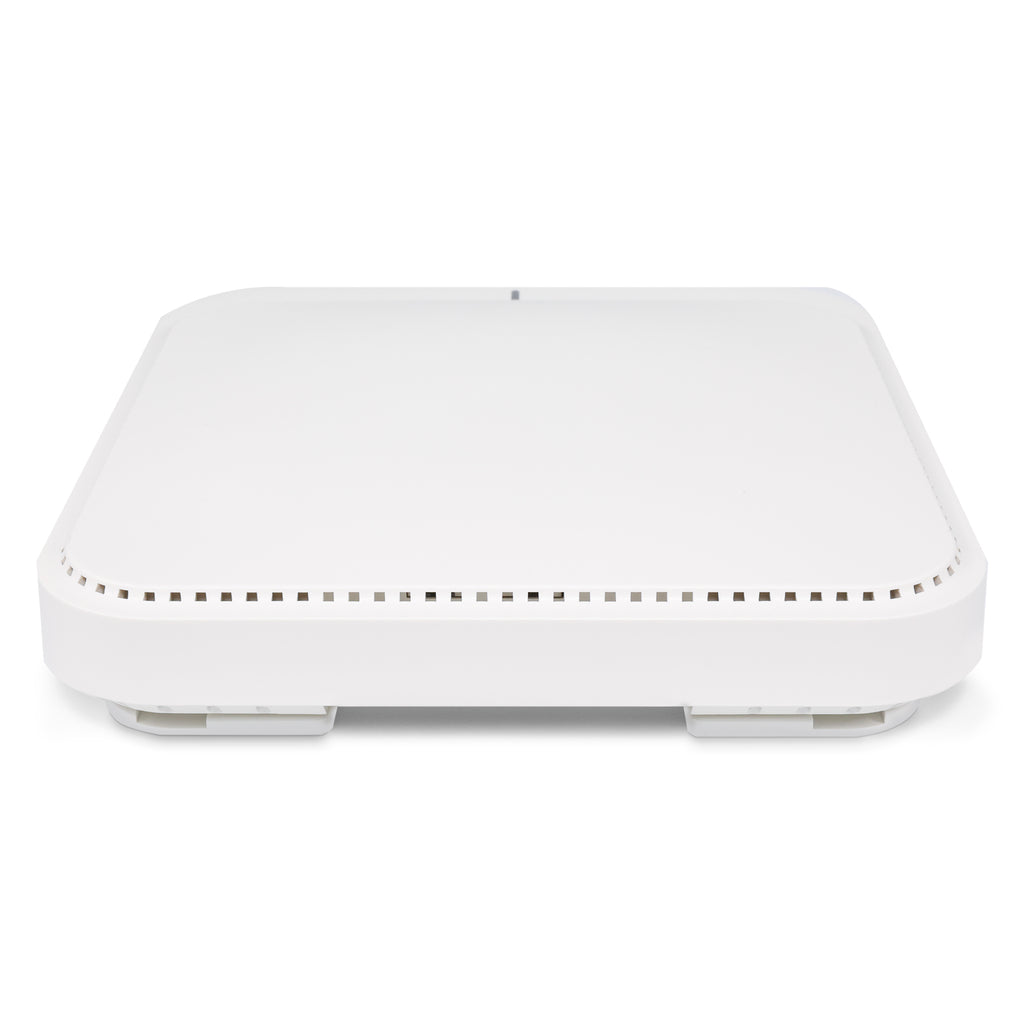

• NB-AP744-C: Newbridge AP744-C Wi-Fi 7; Ceiling Mount Wireless Access Point, 4x4:4 (2.4GHz) , 4x4:4 (5GHz) and 4x4:4 (6Ghz)
• NB-AP744C-SU-1Y: Newbridge AP744-C Hardware and Software Support -1Y
• VC-AP744C-RPL-1Y: VCARE AP744-C NBD AHR, HW & SW SUPPORT, 1Y
